PURE LEAD BATTERY

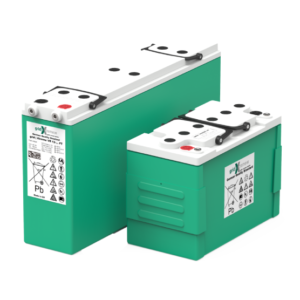

Xtreme VR
Xtreme VR is the next generation of real pure lead (99.99% purity degree) AGM batteries.
HOPPECKE has deliberately opted for better corrosion resistance and thus for a very long service life even in high-current applications and high ambient temperatures, such as in telecom applications.
- Proven ESS technology = reduced life cycle costs (TCO)
- Unique dual-pole design = less service efforts
- Patented, innovative safeguard-tec = lower operational costs

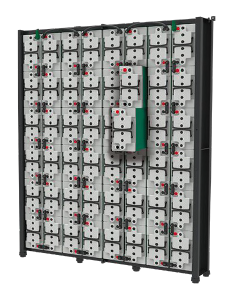

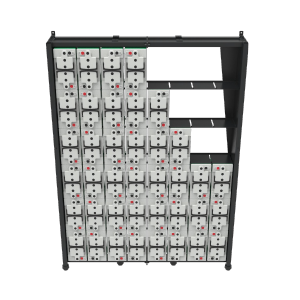

XtremeStack
XtremeStack is tailored to the grid. Xtreme VR batteries in the top terminal variants. If, for example, the UPS performance requirements change, additional modules and batteries can easily be added or removed. The modular approach of grid. XtremeStack ensures optimal maintenance, scalability and flexibility.
Compared to conventional battery racks, the batteries in the new grid.
XtremeStack are stored upright and without gaps.
It supports the function and at the same time saves space and is easy to maintain.
LITHIUM BATTERY
Here are some key points about lithium batteries:
Lithium-Ion Battery (Li-ion): The most common type of lithium battery is the lithium-ion battery.
High Energy Density: Lithium batteries have a high energy density, which means they can store a large amount of energy in a relatively small and lightweight package.
Rechargeable: Lithium batteries are rechargeable, this extends the lifespan of the battery and makes it more cost-effective compared to non-rechargeable batteries.
Long Cycle Life: Lithium batteries generally have a longer cycle life compared to other rechargeable battery technologies.
Low Self-Discharge: Have lose charge at a slower rate when not in use compared to other rechargeable batteries. This allows them to hold their charge for longer periods.
Safety Considerations: Overcharging, extreme temperatures, or physical damage can lead to safety risks such as overheating, swelling, or even fire. Manufacturers implement safety features like protection circuits and advanced battery management systems to mitigate these risks.
AGM / VRLA BATTERY
The VRLA Range caters to all sophisticated and critical applications such as the telecom and UPS back up of all sizes and capacities. The fully automated VRLA battery manufacturing lines ensure the quality that our customers are so used to.
General Features
- Environmentally friendly
- Can be used at vertical or horizontal orientation
- High Reliability and Good Quality
- High gas recombination efficiency
- High Power Density
- Maintenance – Free Operation
- Positive and Negative Electrodes Terminals

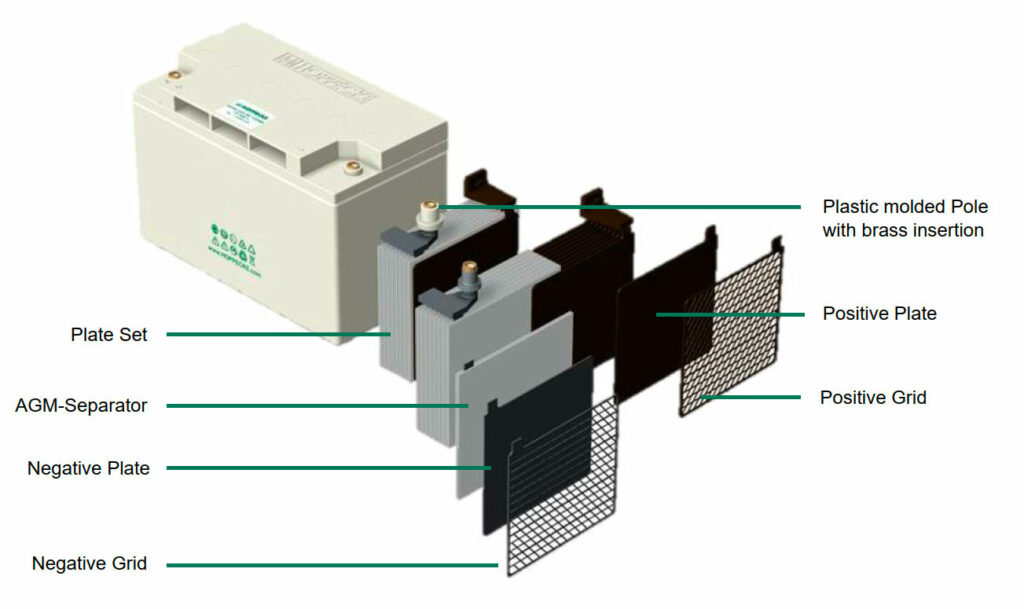

Positive and negative electrodes terminals may be faston tab type, bolt fastening type, threaded post type, or lead wire type, depending on the type of the battery. Sealing of the terminal is achieved by a structure which secures long adhesive-embedded paths and by the adoption of strong epoxy adhesives. - Battery Case Materials
Material of CHLORIDE Powersafe AGM Battery Series case is ABS resins. UL94 V0 frame retardant aterial case is optional. - Positive Plate
Radial design lead-tin-calcium alloy grid with a thickness of 3.2mm to 3.6mm, and it’s filled with porous lead dioxide as its active materials that able to deliver the optimum discharge performance. - Positive Plate
Radial design lead-tin-calcium alloy grid with a thickness of 3.2mm to 3.6mm, and it’s filled with porous lead dioxide as its active materials that able to deliver the optimum discharge performance. - Negative Plate
It is a Lead-tin-calcium alloy grid with a thickness of at least 2.3mm, and filled with spongy lead as its active materials that ensure optimum discharge performance, and long service life. - AGM Separators
Absorbent Glass Mat (AGM) separator that is used to retain the acid electrolyte or the Gel acid catalyse, and it provides longevity in the battery life through minimal ions loses.
